Automatic Film Processor PRO 14 |
|
Product
code: Xpro 14
Origin:
Warranty:
|
|
Share with:
 |
|
|
|
|
|
|
Specifications
Related Products
Automatic Film Processor PRO 14
| Specifications ISO9001 Cerified | | Type | Continuous roller transport | | Processing Time | 90sec. / 120sec. / 180sec. / 210sec. | | Processing Speed | 14mm/sec. (At 90sec. Processing Time) | | Processing Capacity
At 90 Seconds | 35 X 43cm - 115 films/hour

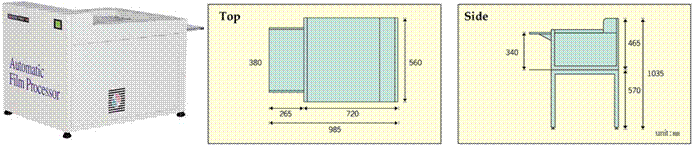

25 X 30cm - 200 films/hour | | Film Size | 35cm wide maximum | | Processing Tank Capacity | Developer 8.2L, Fixer 5.2L, Wash Water 5.2L | | Processing Temperature | Developing 20¡É to 40¡É
Fixing 20¡É to 37¡É
Drying 50¡É to 70¡É
Washing 5¡É or more | | Replenishment Tank Capacity | Developer 20L, Fixer 20L | | Chemical Temperature | Automatic control by electronic circuit board | | Replenishment System | Developer and fixer are supplied automatically by the replenishment pump, and user can control the replenishment rate as desired | | Power Souce | 220V 50/60 Hz single phase | | Power Consumption | Operating - 2.3kw, Standby - 0.5kw | | Dimensions | H465mm (With Base Stand 1035mm)x W560mm x L720mm (With feed tray : 985mm) | | Weight | 90kg (With solution : 105kg) | | Optional Accessories | Base Stand, Dark Wall Panel, Replenishment Tank Sets. |
|
| |
|
 |
|
