PerformX Radiographic System



Generator

Specifications
Power Rating		30-80 kW
kV range		40-150 kVp
mA range		20-1000 mA (depending on the generator power)
mAs range		0.4-600 mAs
Exposure time		3 ms-6 sec.
Fluoroscopic kV		40-120 kV
Fluoroscopic mA		0.5-10 mA (25 mA in Pulse Fluoroscopy)
Power Requirements		From 240 VAC single to 480 three phase
Features
Microprocessor control delivers reliability and accurate exposure parameter management. APR operating mode with 100 examination distributed across 10 anatomical regions. Simple and user-friendly technique reprogramming on site. Manual three factor factor selection permits the operator to modify the recommended kV, mA and time. Easy Auto-Calibration reduces initial installation time. Automatic tube protection. Sophisticated self-diagnostic capability and coded error messaged allow for fast and well-defined initial diagnostics. Compact console is ideally suited for small control rooms. Automatic tube overload protection, selectable 80% or 100%. Automatic Exposure Control can support either four solid state detectors or ion chambers. Automatic Brightness Stabilizer produces optimal fluoroscopic images. Supports one or two x-ray tubes in either radiographic or radiographic and fluoroscopic mode.
Radiographic Table
Specifications
Tabletop Travel - Longitudinal	43" (1100 mm)
Tabletop Travel - Horizontal	+/- 4.7" (+/- 120 mm)
Tabletop Movement	4-way floating
Tabletop Length	86" (2200 mm)
Tabletop Width	32" (810 mm)
Bucky Travel	22.5" (572 mm)
Tabletop Absorption Density	0.6 mm Al equivalent
Power Requirements	110/220V AC, 50/60 Hz
Features
Low absorption tabletop material reducing patient exposure Large, easy to clean tabletop supports up to 300 lb. patient load Extended tabletop travel provides access for wheelchair patients and C-arm procedures Precision bearing system for effortless patient positioning Electromagnetic locking system controlled by a two-step convenient foot treadle Extended Bucky travel covering the entire length of the table base Stainless side rails support a wide variety of tabletop accessories Compatible with floor or ceiling mounted radiographic tube stands Optional accessories include: patient handgrips, lateral cassette holder, compression device, head support, hip support.



Tube Stand

Features

• Centrally located tube stand control.
• Electromagnetic brakes.
• Dual rope counter balancing system  for maximum security.
• "Easy-Glide" system for effortless movement for vertical travel.
• Extended vertical track allows full skull exposure of tall patients as well as lower extremities.
• Transversal tube movement (TS 99T).
• Rotational column (TS 99R).
• Rotational column with transversal tube movement (TS 99RT).

Specifications TS 99, TS 99T   Vertical travel 63 3/4" (162 cm)   Min. Floor-Focus distance 9 3/4" (25 cm) TS 99R, TS 99RT   Vertical travel 59 1/2" (151 cm)   Min. Floor-Focus distance 9 3/4" (25 cm) or 13 3/4" (35 cm) TS 99T, TS 99RT   Transversal tube travel 8 1/2" (21 cm) Longitudinal travel 76 3/4" (195 cm)  [opt.124 3/4" (317 cm)] Rotation at horizontal axis ± 180 º Power Requirement 24 VAC 50/60 Hz "T" Transversal tube movement, "R" Rotational Column , "RT" Rotational column with transversal tube movement.
Wall Stand Features Low absorption front panel material reducing patient exposure. Electrical or mechanical brake by choice Convenient operating control at the Bucky side. "Easy-Glide" system for effortless movement for vertical travel. Extended vertical track allows full skull exposure of tall patients as well as lower extremities Support rails for a variety of patient positioning accesories including, patient handgrips, head clamp, compression device and hip support.
Specifications Vertical Bucky travel 58 1/2" (149 cm) Minimum center to floor distance 15" (38 cm) Minimum ceiling hight 90 1/2" (230 cm) Power Requirements 24 VAC, 50/60 Hz

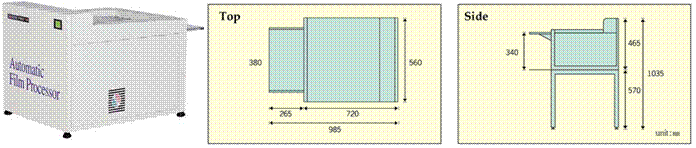

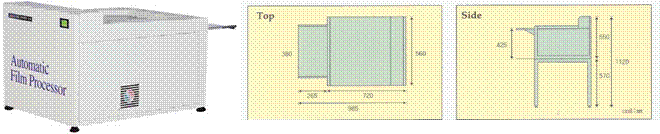

MODEL : DM-100MR Price:  Contact	MODEL : DM-525MR Price:  Contact	Automatic Film Processor PRO CQ Price:  Contact	Automatic Film Processor PRO MG Price:  Contact
